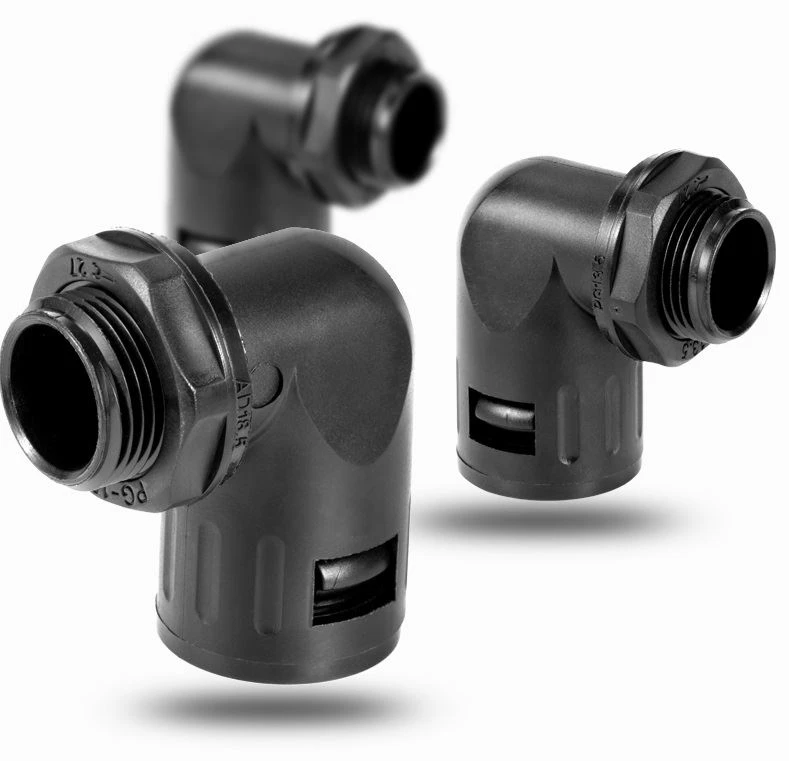

Lub luj tshib Quick Conduit Fitting Connector
Xov: Metric xov / PG / G xov
Khoom siv: siv UL ntawv pov thawj nylon PA66 raw khoom
Khoom xim: Dub, grey lossis lwm yam xim tuaj yeem kho
Qhov kub thiab txias: Min-40 ℃, Max 100 ℃, Lub sijhawm luv 120 ℃
| Khoom npe: | Lub luj tshib ceev conduit haum connector / 90 ° Quick Connector |
| Xov: | Metric xov / PG / G xov |
| Cov khoom siv: | kev siv UL ntawv pov thawj nylon PA66 raw khoom |
| Khoom xim: | Dub, grey lossis lwm yam xim tuaj yeem ua raws |
| Qhov kub thiab txias: | Min-40 ℃, Max 100 ℃, luv luv 120 ℃ |
| Cov yam ntxwv ntawm cov khoom: | nyob rau hauv lub latch lub cev ntawm tshwj xeeb tsim, tuav cia li ntsaws |
| Txoj kev siv: | Cov khoom tuaj yeem nkag mus rau hauv lub thawv khoom, tuaj yeem xaiv raws li cov xov rau hauv lub qhov hluav taws xob rau cov xov sab hauv ntawm cov khoom siv hluav taws xob, yooj yim yoj raj rau hauv lub interface tuaj yeem ua tau. |
Competitive Advantage:
+Kev xa khoom sai: 10 hnub rau ib lub thawv 40ft.
+ Zoo Zoo: ISO / UL daim ntawv pov thawj pom zoo
+Kev Pabcuam zoo tshaj plaws: kev xa khoom sai, pob khoom muaj zog, tus nqi sib tw, kev sib txuas lus raws sijhawm thiab ua haujlwm tau zoo
+Txoj kev daws teeb meem: ceev thiab zoo daws teeb meem.
Haum Flexible Conduit | Metric Dimension ntawm Xov | AG Outer Diameter | I | C | E | F | Packing Units/Pack |
AD 10.0 | M12×1.5 | 12 | 7 | 10 | 32 | 18 | 100 |
AD 10.0 | M16×1.5 | 16 | 10 | 10 | 32 | 20 | 100 |
AD 13.0 Nws | M12×1.5 | 12 | 7 | 10 | 32 | 18 | 100 |
AD 13.0 Nws | M16×1.5 | 16 | 10 | 10 | 34.5 | 20 | 100 |
AD 13.0 Nws | M18×1.5 | 18 | 10 | 10 | 35 | 24 | 100 |
AD 13.0 Nws | M20×1.5 | 20 | 11 | 10 | 35 | 24 | 100 |
AD 15.8 | M16×1.5 | 16 | 11 | 10 | 37.5 | 24 | 100 |
AD 15.8 | M18×1.5 | 18 | 11 | 10 | 37.5 | 24 | 100 |
AD 15.8 | M20×1.5 | 20 | 12 | 10 | 37.5 | 24 | 50 |
AD 18.5 Nws | M20×1.5 | 20 | 15 | 11.5 | 43.5 | 27 | 50 |
AD 21.2 | M20×1.5 | 20 | 15 | 13 | 49 | 31 | 50 |
AD 21.2 | M24×1.5 | 24 | 17 | 13 | 49 | 31 | 50 |
AD 21.2 | M25×1.5 | 25 | 17 | 13 | 49 | 31 | 50 |
AD 25.0 Nws | M25×1.5 | 25 | 19.5 | 13 | 52 | 32 | 50 |
TIAB SA 28.5 | M25×1.5 | 25 | 19.5 | 13 | 57 | 34 | 50 |
TIAB SA 28.5 | M27×2.0 | 27 | 23 | 13 | 57 | 34 | 50 |
TIAB SA 28.5 | M30×2.0 | 30 | 23 | 13 | 57 | 34 | 50 |
ua 34.5 | M32×1.5 | 32 | 27 | 14.5 | 65 | 43 | 20 |
ua 34.5 | M36×2.0 | 36 | 29 | 14.5 | 64 | 43 | 20 |
ua 34.5 | M40×1.5 | 40 | 29 | 14.5 | 64 | 43 | 20 |
ua 42.5 | M40×1.5 | 40 | 34 | 14.5 | 72 | 50 | 10 |
ua 42.5 | M48×2.0 | 48 | 36 | 14.5 | 72 | 50 | 10 |
ua 54.5 | M50×1.5 | 50 | 44 | 16 | 84 | 64 | 5 |
ua 54.5 | M60×2.0 | 60 | 48 | 16 | 84 | 64 | 5 |
ua 54.5 | M63×1.5 | 63 | 48 | 16 | 84 | 64 | 5 |
Haum Flexible Conduit | PG Dimension Ntawm Xov | AG Outer Diameter | I | C | E | F | Packing Units/Pack |
AD 10 | PG 7 | 12.5 | 7 | 10 | 32 | 16 | 100 |
AD 11.6 | PG 7 | 12.5 | 7 | 10 | 32 | 18 | 100 |
AD 13 | PG 9 | 15.2 | 10 | 10 | 34 | 20 | 100 |
AD 15.8 | PG11 | 18.6 | 12 | 10 | 37.5 | 24.6 | 100 |
AD 15.8 | PIB 13.5 | 20.4 | 14 | 10 | 37.5 | 24 | 100 |
AD 18.5 Nws | PIB 13.5 | 20.4 | 14 | 11 | 43.5 | 27 | 50 |
AD 21.2 | PG16 | 22.5 | 15 | 13 | 48 | 31 | 50 |
28.2 Nws | PWG 21 | 28.3 | 22 | 13 | 57 | 34 | 50 |
ua 34.5 | PWG 29 | 37 | 29 | 14 | 64 | 43 | 20 |
ua 42.5 | PIB 36 | 47 | 38 | 14 | 72 | 50 | 10 |
ua 54.5 | PIB 48 | 59.3 | 50 | 15.5 | 84 | 64 | 5 |
Haum Flexible Conduit | G Dimension Ntawm Xov | AG Outer Diameter | I | C | E | F | Packing Units/Pack |
AD 13 | G3/8'' | 16.6 | 10 | 12 | 32 | 20 | 100 |
AD 21.2 | G1/2'' | 21.3 | 11 | 13 | 49 | 31 | 50 |
AD 25 | G1/2'' | 21.63 | 11 | 13 | 52 | 32 | 50 |
TIAB SA 28.5 | G3/4'' | 26.6 | 21 | 13.5 | 57 | 34 | 50 |
ua 34.5 | G1'' | 33.4 | 28 | 15 | 65 | 43 | 20 |
Khoom kom zoo dua:
Plua plav
Ntsev tsis kam
Yooj yim nruab, yooj yim tshem tawm.
Yooj yim dua los txuas nrog cov yeeb nkab hloov tau yooj yim thiab corrugated piple.
Yuav siv li cas: Lub luj tshib ceev conduit haum connector yog cov fittings ntawm cov kav dej hloov tau yooj yim, uas tuaj yeem txuas nrog lub tsev ntawm cov khoom siv lossis txuas nrog cov khoom siv hluav taws xob nrog cov khoom siv sab hauv threaded nkag lub qhov raws li cov xov xaiv.Tsuas ntxig cov yeeb nkab felxible rau hauv lub koomhaum.
PACKING:
TRADE TERM:
1. Kev Them Nyiaj: L / C, T / T, D / A, D / P, Western Union, Paypal… thiab lwm yam.
2. OEM: txais
4. Kev xa khoom: • Los ntawm Courier: 1-2 hnub ua haujlwm los ntawm kev muab tshwj xeeb
• Los ntawm Cua: 4-7 hnub ua hauj lwm ntawm lub tshav dav hlau teem
• Los ntawm hiav txwv: 20-25 hnub ua haujlwm ntawm chaw nres nkoj
Peb Cov Kev Pabcuam
1. Superior Quality:
Tag nrho cov ntaub ntawv uas peb siv yog 1st Class, peb PVC Coated Flexible steel conduit yog tag nrho cov zoo, khoom thiab technics yog heev advanced. Peb them nyiaj ntau rau txhua yam ntawm qhov zoo los ntawm kev tsim khoom mus rau pob.
2. Tus nqi sib tw:
Peb tus kheej yuav cov khoom siv rau peb lub koom haum kev lag luam los siv rau kev tsim khoom, yog li ntawd, peb tus nqi qis dua lwm tus thiab cov nqi sib tw ntau dua.
3. Kev yooj yim rau kev yuav khoom:
Cov neeg siv khoom tuaj yeem nrhiav tau tag nrho cov fittings cuam tshuam ntawm no, thiab tuaj yeem tau txais tag nrho cov khoom koj xav tau hauv lub sijhawm luv dua.Zoo li teeb tsa ntsia hlau coupling \ compression connectors \ strut clamps \ txo bushings thiab lwm yam.
4. Kev Pabcuam Zoo:
Tag nrho peb cov neeg ua haujlwm muag khoom yog cov kws tshaj lij thiab mob siab rau, thiab peb muab cov lus qhia zoo raws li qhov xav tau ntawm cov kev lis kev cai sib txawv los ntawm ntau lub teb chaws.Qhov tseem ceeb tshaj plaws yog Prostar ib txwm ua lub luag haujlwm rau peb cov khoom, peb muab cov kev pabcuam tom qab muag tag. Exports rau North America, Middle East, Asia thiab lwm lub teb chaws thiab cheeb tsam.
FAQ
1. Q: Koj puas muaj daim ntawv teev npe? Koj puas tuaj yeem xa kuv daim ntawv teev npe kom muaj kev kuaj xyuas tag nrho koj cov khoom?
A: Yog, Peb muaj cov khoom catalog. Thov hu rau peb ntawm kab lossis xa email rau xa cov catalogue.
2. Q: Kuv xav tau koj daim ntawv teev nqi ntawm tag nrho koj cov khoom, koj puas muaj daim ntawv teev nqi?
A: Peb tsis muaj daim ntawv teev nqi ntawm tag nrho peb cov khoom. Vim tias peb muaj ntau yam khoom, thiab nws tsis tuaj yeem kos tag nrho lawv cov nqi ntawm ib daim ntawv teev npe. Thiab tus nqi yeej ib txwm hloov vim tus nqi tsim khoom. Yog tias koj xav txheeb xyuas cov nqi ntawm peb cov khoom, thov koj xav tiv tauj peb.Peb yuav xa cov lus qhia rau koj sai sai!
3. Q: Kuv nrhiav tsis tau cov khoom ntawm koj cov catalogue, koj puas tuaj yeem ua cov khoom no rau kuv?
A: Peb cov catalogue qhia feem ntau ntawm peb cov khoom, tab sis tsis yog tag nrho. Yog li cia li qhia rau peb paub yam khoom koj xav tau, thiab koj xav tau pes tsawg. Yog tias peb tsis muaj, peb kuj tuaj yeem tsim thiab ua pwm tshiab los tsim nws. Rau koj siv, ua cov pwm zoo tib yam yuav siv li 35-45 hnub.
4. Q: Koj puas tuaj yeem ua cov khoom lag luam customized thiab ntim khoom?
A: Yog. Peb tau ua ntau yam khoom customized rau peb cov neeg siv khoom ua ntej .(tsuas yog xaim hlua)
Thiab peb tau ua ntau yam pwm rau peb cov neeg siv khoom lawm.
Txog kev ntim khoom customized, peb tuaj yeem muab koj lub Logo lossis lwm yam ntaub ntawv ntawm lub ntim. Tsis muaj
teeb meem. Tsuas yog yuav tsum taw qhia tias, nws yuav ua rau qee tus nqi ntxiv.
5. Q: Koj puas tuaj yeem muab cov qauv? Puas yog cov qauv dawb?
A: Yog, peb tuaj yeem muab cov qauv. Nquag, peb muab 1-3pcs dawb kuaj rau kev kuaj lossis kuaj xyuas zoo.
Tab sis koj yuav tsum them tus nqi thauj khoom. Yog tias koj xav tau ntau yam khoom, lossis xav tau ntau qty rau txhua yam,
peb yuav them rau cov qauv.
6. Q: Hom kev them nqi twg koj txais? Kuv puas tuaj yeem them RMB?
A: Peb lees txaisT/T(Hloov pauv),Western UnionthiabPaypal. Thov nco ntsoov tias peb tuaj yeem tau txais
tib tus nqi ntawm Invoice. Thiab koj tuaj yeem them nyiaj hauv RMB. Tsis muaj teeb meem.
7. Q: Ua li cas txog koj lub sijhawm khoom xa tuaj?
A: Peb muaj ntau yam khoom hauv Tshuag. Peb tuaj yeem xa cov khoom lag luam hauv 3 hnub ua haujlwm.
Yog tias tsis muaj Tshuag, lossis Tshuag tsis txaus, peb yuav xyuas lub sijhawm khoom xa tuaj nrog koj.
8. Q: Yuav ua li cas xa kuv daim ntawv xaj? Puas muaj kev nyab xeeb?
A: Rau pob me me, peb yuav xa los ntawm Express, xws li DHL, FedEx,, UPS, TNT, EMS.
Qhov Rooj To Door Service.
Rau cov pob loj, peb yuav xa lawv los ntawm Cua lossis Los ntawm hiav txwv. Peb yuav siv cov khoom ntim zoo thiab xyuas kom meej
qhov kev nyab xeeb.Peb yuav ua lub luag haujlwm rau txhua yam khoom puas tsuaj los ntawm kev xa khoom.
9. Q: Koj puas muaj kev lees paub ntawm koj cov khoom zoo?
A: Peb muaj ib lub xyoo lav.
10. Q: Kuv puas tuaj yeem dhau los ua Tus Neeg Sawv Cev / Tus Neeg Muag Khoom ntawmGORDONcov khoom?
A: Txais tos! Tab sis thov qhia rau kuv paub koj lub teb chaws / cheeb tsam fisrt, Peb yuav muaj ib daim tshev thiab mam li tham txog qhov no. Yog tias koj xav tau lwm yam kev koom tes, tsis txhob yig tiv tauj peb.
Tshaj kev nplua nuj OEM, peb tuaj yeem muab cov kev daws teeb meem rau cov neeg siv khoom.
Cim npe nrov: Lub luj tshib ceev conduit haum connector, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale
