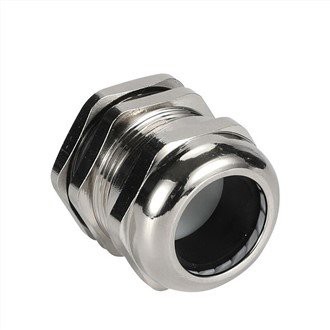

NPT Hlau Cable Glands
Xov: PG, Metric, G, thiab NPT xov
Cov ntaub ntawv: Nrog npib tsib xee plated rau ACF qhov chaw, pom zoo Nylon PA66 (Flammability 94V-2) rau E qhov chaw, EPDM roj hmab rau BD qhov chaw, (Tau ua cov roj hmab super: tiv taus kub kub, tiv taus acid / alkali, thiab lwm yam).
| Xov: | PG, Metric, G, thiab NPT xov |
| Khoom siv: | Nrog npib tsib xee plated rau ACF qhov chaw, pom zoo Nylon PA66 (Flammability 94V-2) rau E qhov chaw, EPDM roj hmab rau BD qhov chaw, (Tau ua super roj hmab: tiv taus kub kub, tiv taus acid / alkali, thiab lwm yam). |
| Kev tiv thaiv qib: | IP68 |
| Ua haujlwm kub: | -40 ℃ to 100 ℃ |
| Nta: | Cov claws thiab cov ntsaws ruaj ruaj ntawm cov qauv zoo heev, sealing txiv ntoo muaj" nyem" suab thiab rov qhib dua, tuaj yeem tuav cable kom ruaj khov thiab muaj qhov dav dav dav. Resistant mus rau dej ntsev, tsis muaj zog acid, cawv, roj, roj thiab ntau solvency. |
Xov | Clamp Range | H | GL | Wrench Loj | Yam khoom No. |
mm | mm | mm | mm | ||
3/8" NPT | 4-8 | 21 | 15 | 17/19 | N3808BR |
3/8" NPT | 2-6 | 21 | 15 | 17/19 | N3806BR |
1/2" NPT | 6-12 | 24 | 13 | 22/24 | N1212BR |
1/2" NPT | 5-9 | 24 | 13 | 22/24 | N1209 Nr |
3/4" NPT | 13-18 | 25 | 13 | 30 | N3418BR |
3/4" NPT | 9-16 | 25 | 13 | 30 | N3416BR |
1" NPT | 18-25 | 29 | 19 | 40 | N10025BR |
1" NPT | 13-20 | 29 | 19 | 40 | N10020BR |
PkabAdaim ntawv thov:
Kev qhia:
1.Waterproof cable caj pas yog cov khoom sib txuam ntawm cable, feem ntau yog siv rau hauv lub txee faib khoom thiab lub thawv xa khoom.
2.Gland tuaj yeem kaw lub cable, lwm qhov kawg ntawm nws tuaj yeem ntsaws rau hauv cov khoom txee, ntsia hlau threads muaj raws li qhov kev thov.
3.Qhov chaw nres nkoj yog nyob rau sab hauv cov ntsia hlau xov ntawm cov khoom siv hluav taws xob. Nws tuaj yeem clamp cables tau zoo los ua kom tsis muaj dej.
4.Raws li cov khoom siv installation, nws tuaj yeem muab faib ua pyrocondensation hom (feem ntau yog ib qho), qhuav pob hom, epoxy resin filling hom thiab contraction hom.
5.Raws li cov ntaub ntawv tseem ceeb, nws tuaj yeem muab faib ua tooj liab tub ntxhais fais fab cable thiab txhuas core fais fab cable.
6.Nws tuaj yeem ua cov hlua txuas thiab khaws cov hlua khi, thiab paub tseeb tias lub caj pas cable tuaj yeem nyob hauv kev tiv thaiv kev tiv thaiv, yog li ua rau nws muaj kev nyab xeeb rau kev ua haujlwm.
7.Yog tias lub foob tsis zoo, nws yuav plam roj thiab ua rau cov roj-impregnated ntawv kom qhuav, thiab cov av noo yuav nkag mus rau sab hauv ntawm cable kom degrade lub peev xwm rwb thaiv tsev.
Ntim
1. Kev ntim khoom: Polybag+Label+Export Carton
2. Customized packing: Header card packing, Blister with card packing, Ob chav Blister packing, Canister packing, lwm yam packing tuaj yeem muab tau raws li cov neeg siv khoom xav tau.
TRADE TERM:
1. Lub sijhawm them nyiaj:
1) 30% los ntawm TT raws li tso nyiaj ua ntej ntau lawm thiab qhov nyiaj tshuav los ntawm TT ua ntej ua zaub mov xa tuaj.
2) 30% los ntawm TT raws li tso nyiaj ua ntej ntau lawm thiab qhov nyiaj tshuav los ntawm TT tiv thaiv daim B / L.
3) 100% T / T ua ntej nrog tag nrho cov nqi qis dua $ 5000.
2. Muaj peev xwm muab khoom: 20ft Thawv / Lub Hlis
3. OEM: txais
4. Kev xa khoom: • Los ntawm Courier: 1-2 hnub ua haujlwm los ntawm kev muab tshwj xeeb
• Los ntawm Cua: 4-7 hnub ua hauj lwm ntawm lub tshav dav hlau teem
• Los ntawm hiav txwv: 20-25 hnub ua haujlwm ntawm chaw nres nkoj
1. Q: Kuv puas tuaj yeem muab kuv lub logo rau ntawm nws?
A: Tseeb, cov neeg siv khoom' logo tuaj yeem luam tawm lossis muab tso rau ntawm cov khoom.
2. Q: Yuav ua li cas txog qhov lav ntawm cov khoom?
A: Raws li qhov xwm txheej tiag tiag.
3. Q: Yuav ua li cas txog qhov zoo?
A: Ntau tshaj 1 xyoos. Txhua yam khoom yuav txawv warranty, thov hu rau peb.
4. Q: Yuav ua li cas txog daim ntawv pov thawj?
A: CE / UL / RoHS / SGS thiab lwm yam ...
5. Q: Kuv puas tuaj yeem yuav 1pc qauv ua ntej thiab txiav txim me me?
A: Tau kawg, txhawb nqa cov qauv txiav txim thiab kev txiav txim me me, tshwj xeeb tshaj yog rau cov neeg siv khoom tshiab hauv qee yam mob.
6. Q: Ntau npaum li cas rau 1pc qauv?
A: Cov qauv tuaj yeem muab pub dawb.
7. Q: Ntev npaum li cas los ua tus qauv?
A: Cov qauv yuav raug npaj ua ntej peb hnub.
8. Q: Qhov kev them nyiaj twg txais tau?
A: PayPal lossis sab hnub poob tuaj yeem lees txais rau cov qauv.
